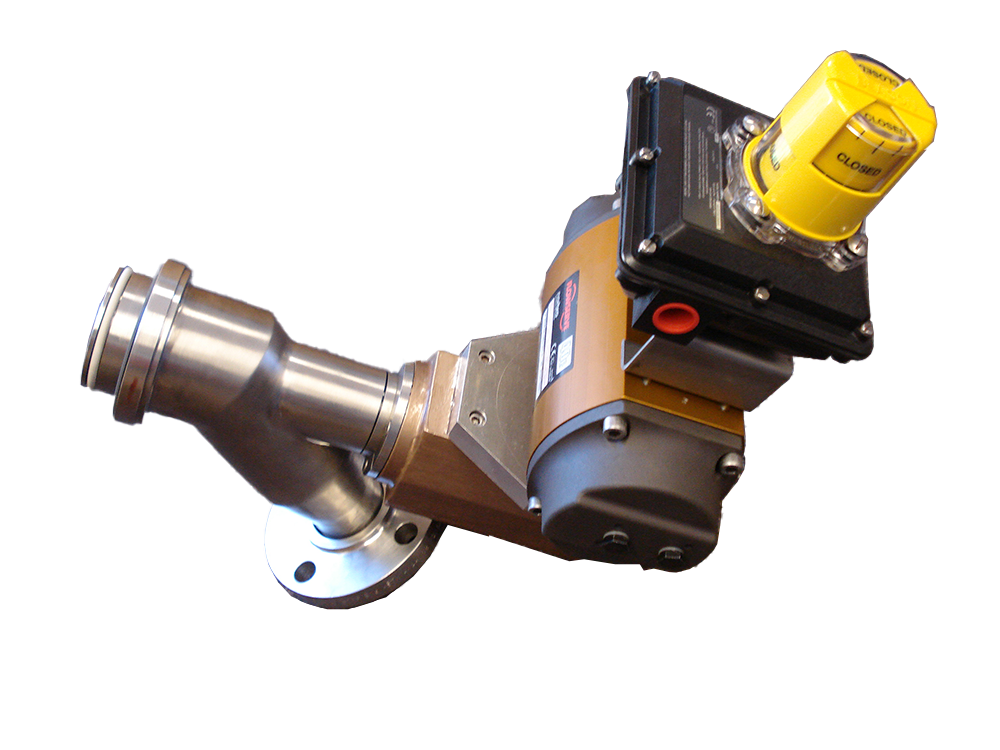

Surmet – Series II Valve

The Series II Outlet Valve has been designed to incorporate the features demanded by all the modern processing Industries and is widely accepted as a very versatile Bottom outlet valve in mainly the Food, Pharmaceutical , Petro-Chemical and Cosmetics applications and among many other sectors.

Series II Unique Features:

  • Internal of the Valve Fully Mirror Finished and Crevice Free
  • All wetted parts are constructed in 316L Stainless Steel
  • Flush fitting to the bottom of the vessel
  • Valve easily to Maintain and Service if required
  • Designed for ‘in-place’ cleaning applications
  • Valve Tested to 10 bar G
  • Max Working Temperatures upto 250 ºC
  • Lowering stem option with non restricting flow
  • 180º lever operation for quick and positive controlwith locking facility at intermediate positions

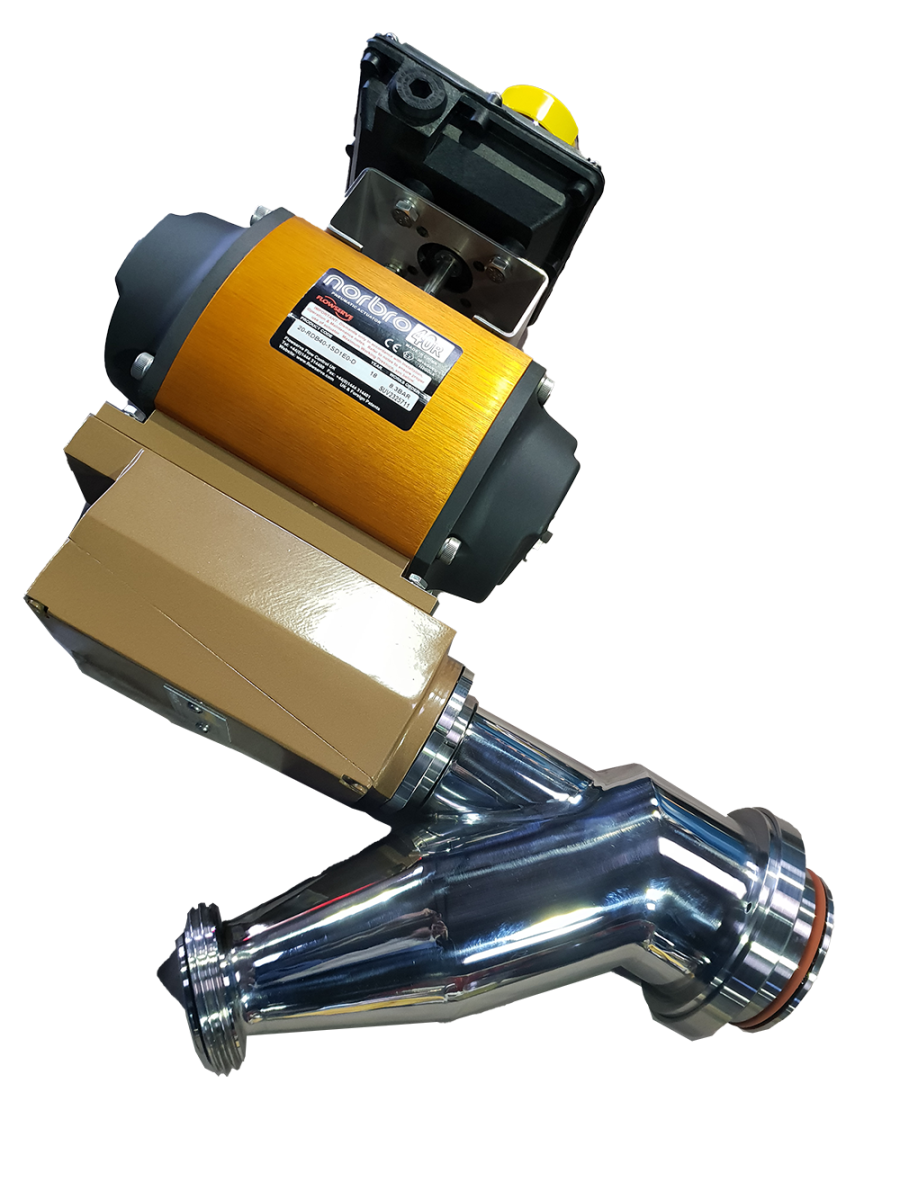

  • Fully Pneumatic Option for full Automation
  • Available in 50,75 and 100mm Outlet sizes

Optional Extras include :

  • Heating or Cooling Jacket

  • Electropolished internally

  • Quick release Tri-Clover mounting

  • Outlet connection to suit customer’s requirements

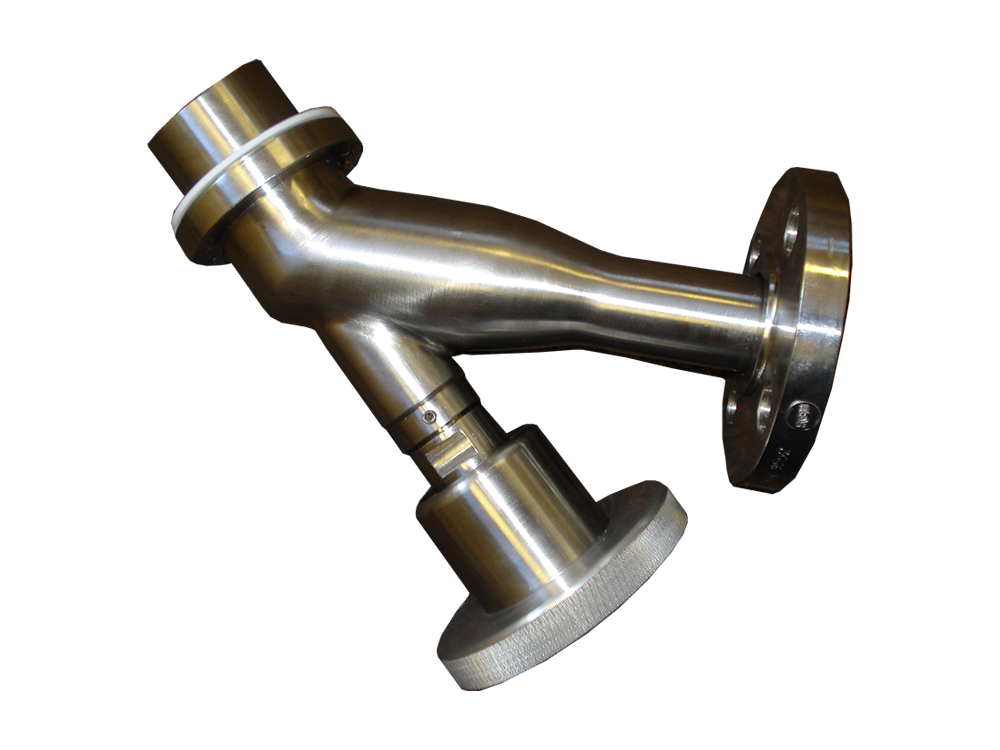

Surmet – Series 1b Valve

MAKE AN ENQUIRY
The series 1b valve is a Gen 1 Outlet Valve that has since been replaced with the Series II Outlet Valve but we still continue to offer full support and spares as required for the 1b to our customer’s.
